120X120

Home  > Products  > Bolt Truss > 120X120

Square Truss UR-QSB120

Square Truss UR-QSB120
  • Square Truss UR-QSB120
  • Square Truss UR-QSB120
  • This is one of the small screw truss, 6082-T6 Aluminium material, with the advantage og beautiful appearance, samll volumn but with stronger load capacity, light self weight. Used for some small performances, exhibition ect. We provide three difference connection option: Conical, Screw, and Fork coupler truss. Other irregular shapes can be ordered according to the customers requirement.

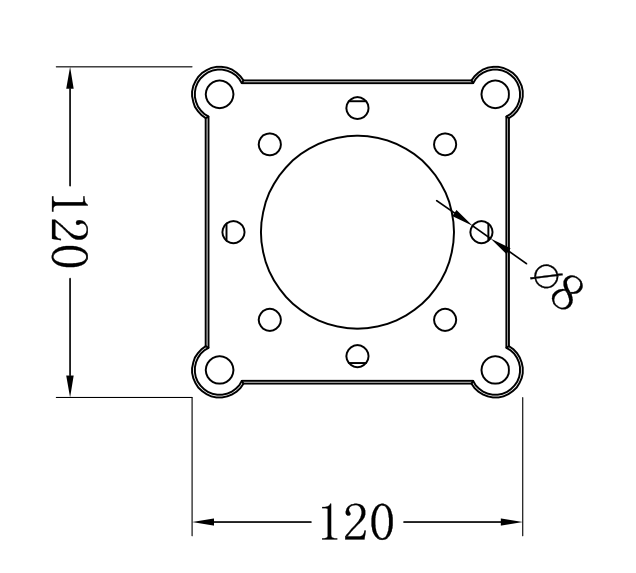

          Model    Description    Specification     Length/mm
      UR-QSB120-500


      Material:6082-T6

      Main tube:20*2.0mm

        Brace:5.0mm

      Aluminium Plate:8mm

         thickness

          120*120       500
      UR-QSB120-1000      120*120       1000
      UR-QSB120-1500      120*120       1500
      UR-QSB120-2000      120*120       2000
      UR-QSB120-2500      120*120       2500
      UR-QSB120-3000      120*120       3000
