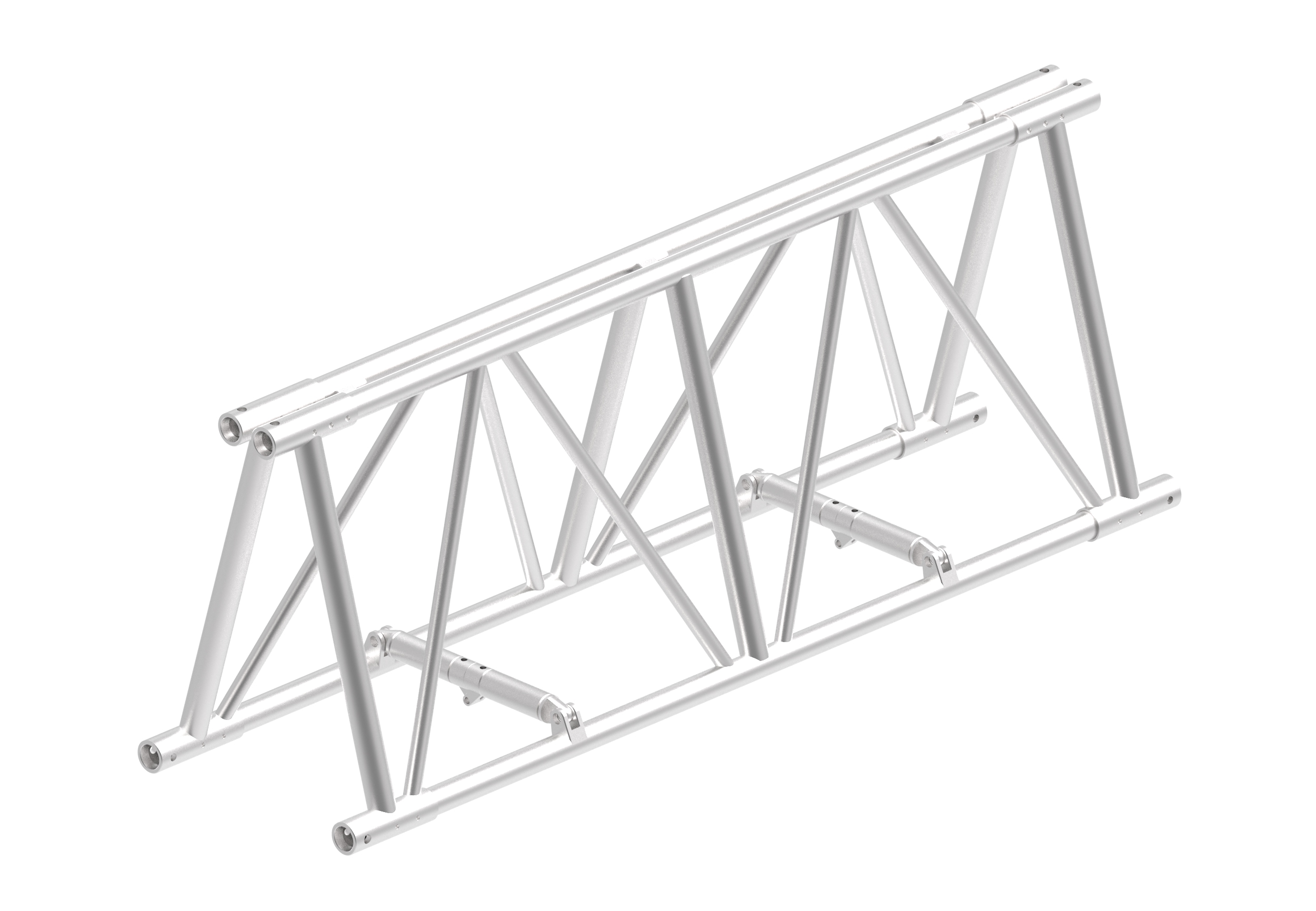

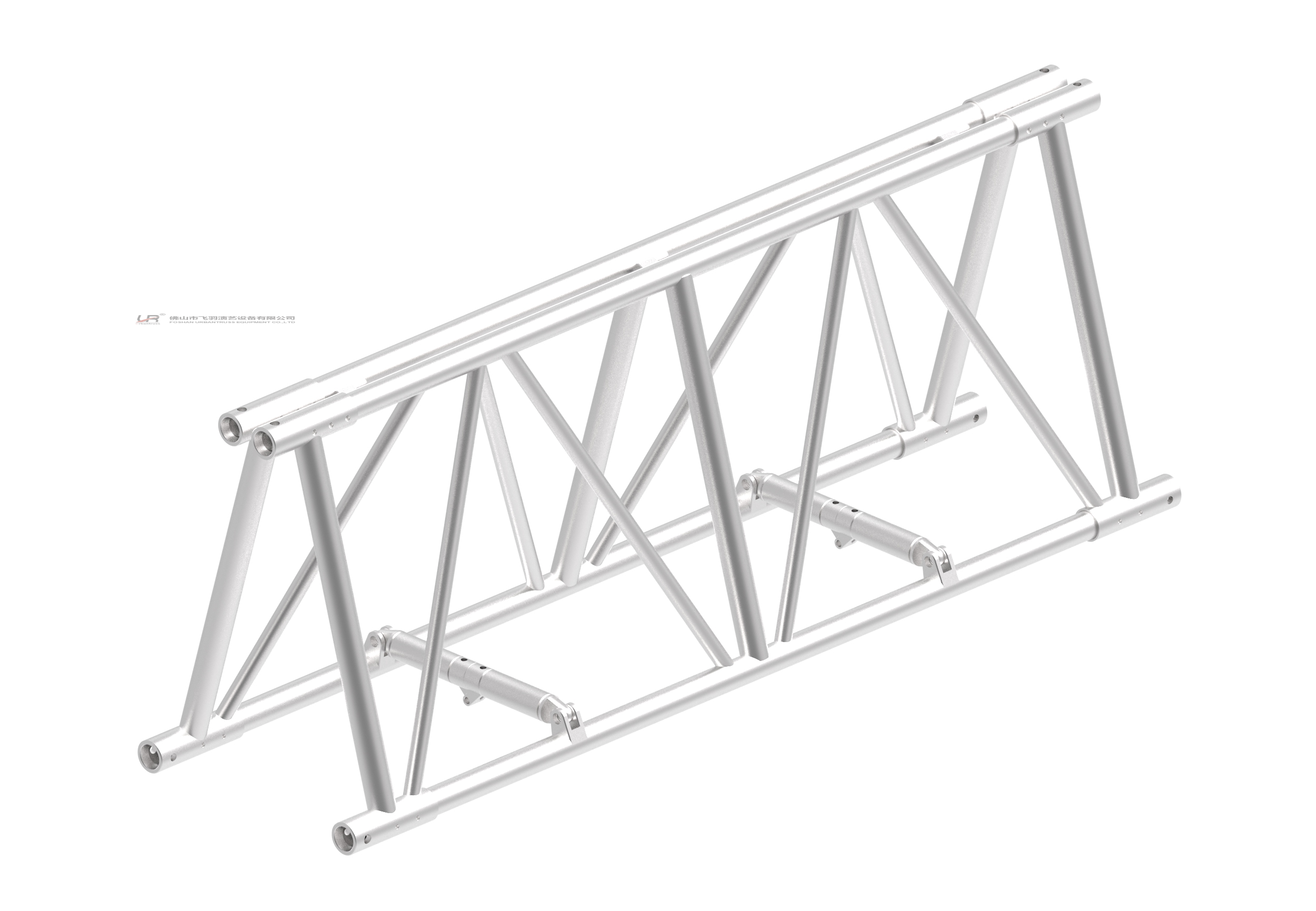

This is one of the Large size folding truss, 6082-T6 Aluminium material, with the advantage og beautiful appearance, samll volumn but with stronger load capacity, light self weight. Used for some small performances, exhibition ect. We provide three difference connection option: Conical, Screw, and Fork coupler truss. Other irregular shapes can be ordered according to the customers requirement.
| Model | Description | Specification | Length/mm |

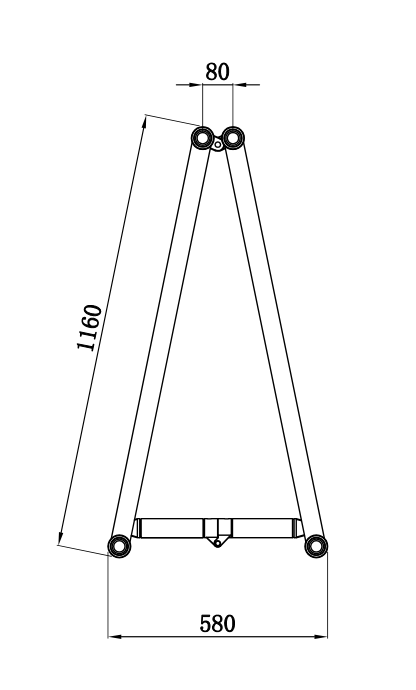

| UR-ZHC1160580-1000 | Material:6082-T6 Main tube:50*5.0mm Brace:50*3.0mm Diagonal:43*3.0mm Spacer:60*130mm | 1160*580 | 1000 |
| UR-ZHC1160580-1500 | 1160*580 | 1500 | |
| UR-ZHC1160580-2000 | 1160*580 | 2000 | |
| UR-ZHC1160580-2500 | 1160*580 | 2500 | |
| UR-ZHC1160580-3000 | 1160*580 | 3000 |
