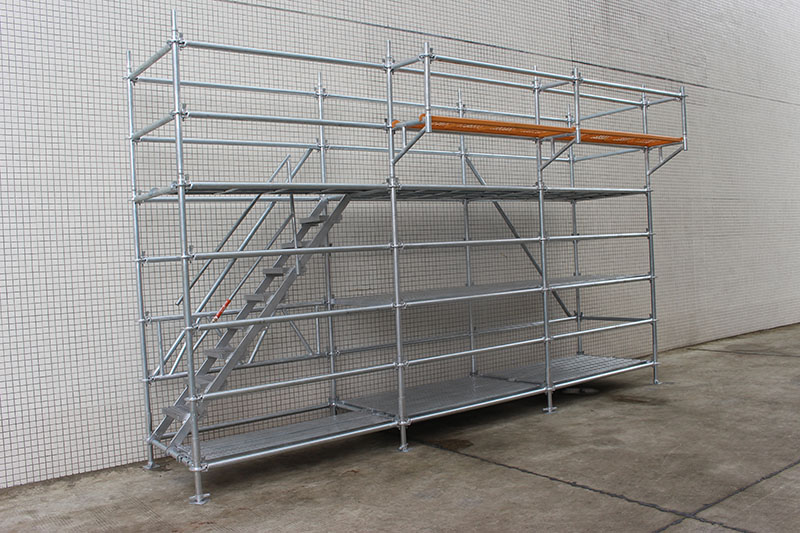

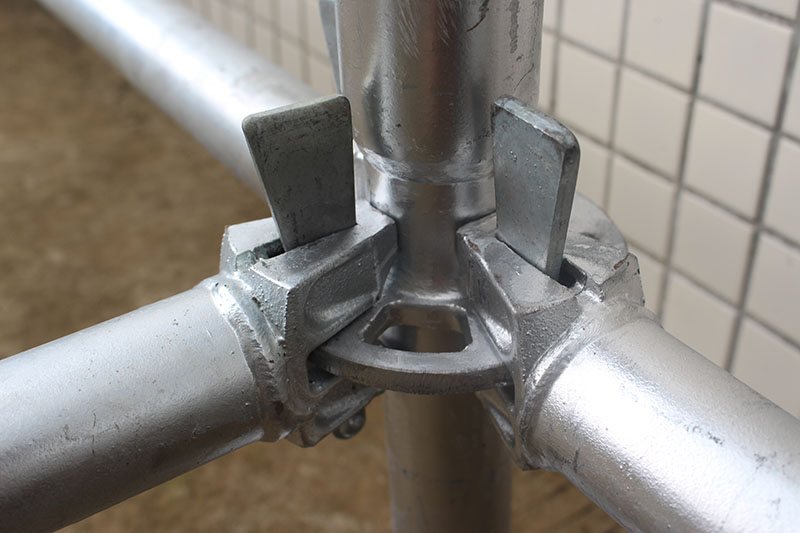

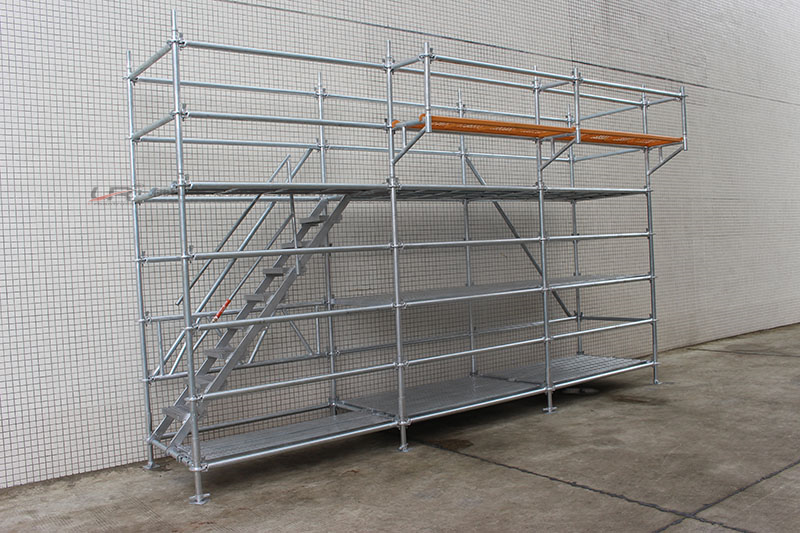

Reya: Rea frame, because the basic principle of the scaffolding by the German LAYHER (Rhea) company invented, the industry has also been known as "Rea rack." At present for the broad characteristics of the performing arts market, the company designed a set of applicable to the industry Reina rack. The main features of the new Reina frame: erection of fast, easy transportation, security, lightweight, clean and beautiful. I produced the Rea rack no spare parts, using octagonal disk-type nodes to connect the cross bar and inclined rod, erection speed faster than other support frame 50%; Reina frame with two force bar, power transmission path is simple, clear, reasonable. Raya frame wide range of applications, Reina stand stage, Rea frame light frame, Reina frame background frame, Reya frame scaffolding. Reina main frame includes: column, cross bar and oblique rod, reprovision adjustment base. Column conventional 2 m / root, according to the root count prices. Can also be customized according to customer requirements of various sizes.
Reya frame light frame: specifications 2 meters * 2 meters, can also be customized according to customer size. A set of Rea rack light frame includes: column, crossbar and cable-stayed, reprovision adjustment base.
Specifications: plate button type
Column (2 m) conventional (hot dip galvanized pipe) Q235, ¢ 48 * 3.0mm, 9.6kg
Rail (2 m) conventional (hot dip galvanized pipe) Q235, ¢ 48 * 3.0mm, 6.5kg
Cable (2.5 m) conventional (hot dip galvanized pipe) Q235, ¢ ¢ 48 * 3.0mm, 7.3kg.
Layer also known as grid frame、Aluminum platform.Easy to assemble and disassemble, heavy load.Can be arbitrarily adjustable height, can be infinitely extended, a wide range of uses. Mainly used for hanging sound,background,follow spot etc. At the same time, it can also be used for mobility work platform.
| Model | Description | Length/m | Weight/kg | |||||||||||||
| UR-BR | Main Tubes：Q23 Main Tubes：48*2.3 surface preparation：Hot galvanizing | 1800(W)*1500(H)*2.3 | 7.2 | |||||||||||||
| UR-BR | 2400(W)*1500(H)*2.3 | 8.43 | ||||||||||||||
| UR-BR | 2400(W)*2000(H)*2.3 | 9.23 | ||||||||||||||
