| Four-side elbow | |||||||||||||||
 |  |  |  | ||||||||||||
| 2-way Horizontal 30°corner | 2-way Horizontal 45°corner | 2-way Horizontal 60°corner | 4-way Horizontal corner A | ||||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||||
| UR-QWC220-H30 | 900 | UR-QWC220-H45 | 600 | UR-QWC220-H60 | 500 | UR-QWC220-4A | 400 | ||||||||
| UR-QWC290-H30 | 1300 | UR-QWC290-H45 | 900 | UR-QWC290-H60 | 700 | UR-QWC290-4A | 500 | ||||||||
| UR-QWC400-H30 | 1600 | UR-QWC400-H45 | 1100 | UR-QWC400-H60 | 900 | UR-QWC400-4A | 600 | ||||||||
 |  |  |  | ||||||||||||

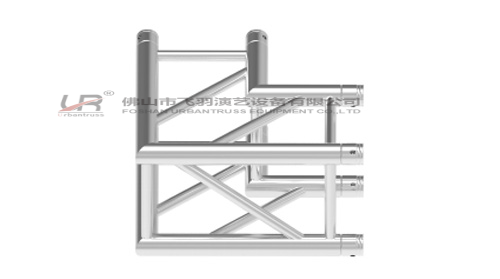

| 2-way vertical 90°corner | 2-way vertical 120°corner | 2-way vertical 135°corner | 4-way vertical corner B | ||||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||||
| UR-QWC220-H90 | 400 | UR-QWC220-H120 | 400 | UR-QWC220-H135 | 400 | UR-QWC220-4B | 400 | ||||||||
| UR-QWC290-H90 | 500 | UR-QWC290-H120 | 500 | UR-QWC290-H135 | 500 | UR-QWC290-4B | 500 | ||||||||
| UR-QWC400-H90 | 500 | UR-QWC400-H120 | 500 | UR-QWC400-H135 | 500 | UR-QWC400-4B | 600 | ||||||||
 |  |  |  | ||||||||||||

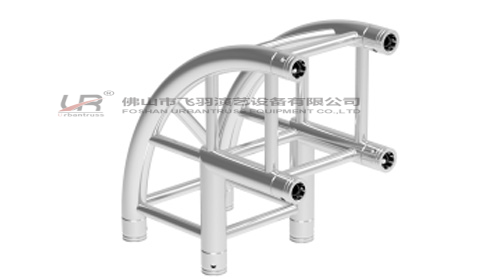

| 2-way vertical 90°corner | 3-way vertical corner A | 3-way vertical corner B | 5-way vertical corner | ||||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||||
| UR-QWC220-R90 | 400 | UR-QWC220-3A | 400 | UR-QWC220-3B | 400 | UR-QWC220-5 | 400 | ||||||||
| UR-QWC290-R90 | 500 | UR-QWC290-3A | 500 | UR-QWC290-3B | 500 | UR-QWC220-5 | 500 | ||||||||
| UR-QWC400-R90 | 600 | UR-QWC400-3A | 600 | UR-QWC400-3B | 600 | UR-QWC220-5 | 600 | ||||||||
| |||

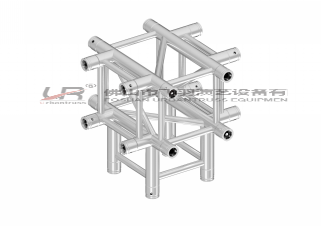

| 6-way vertical corner | |||
| Model | L(mm) | ||
| UR-QWC220-6 | 400 | ||
| UR-QWC290-6 | 500 | ||
| UR-QWC400-6 | 600 | ||
