| Three side elbow | |||||||||||||
 |  |  |  | ||||||||||

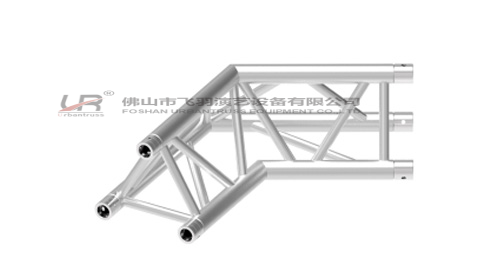

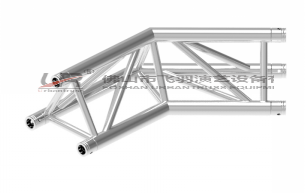

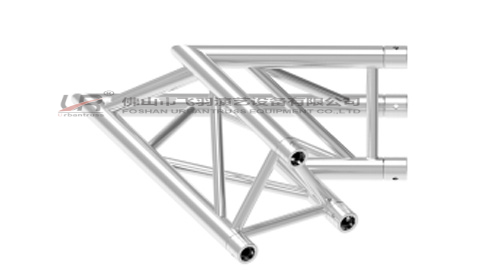

2-way Horizontal 30°corner | 2-wayHorizontal 45°corner | 2-way Horizontal 60°corner | 4-way corner B | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-TWC220-H30 | 900 | UR-TWC220-H45 | 600 | UR-TWC220-H60 | 500 | UR-TWC220-4B | 400 | ||||||
| UR-TWC290-H30 | 1300 | UR-TWC290-H45 | 900 | UR-TWC290-H60 | 700 | UR-TWC290-4B | 500 | ||||||
| UR-TWC400-H30 | 1600 | UR-TWC400-H45 | 1100 | UR-TWC400-H60 | 900 | UR-TWC400-4B | 600 | ||||||
 |  |  |  | ||||||||||
2-way Horizontal 90°corner A | 2-way Horizontal 120°corner | 2-way Horizontal 135°corner | 4-way corner A | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-TWC220-H90 | 600 | UR-TWC220-H120 | 400 | UR-TWC220-H135 | 400 | UR-TWC220-4A | 400 | ||||||
| UR-TWC290-H90 | 900 | UR-TWC290-H120 | 500 | UR-TWC290-H135 | 500 | UR-TWC290-4A | 500 | ||||||
| UR-TWC400-H90 | 1100 | UR-TWC400-H120 | 600 | UR-TWC290-H135 | 600 | UR-TWC400-4A | 600 | ||||||
 |  |  |  | ||||||||||
2-way vertical 90°corner 2 | 3-way corner D | 3-way corner A | 5-way corner A | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-TWC220-V90 | 400 | UR-TWC220-3D | 400 | UR-TWC220-3A | 400 | UR-TWC220-5A | 400 | ||||||
| UR-TWC290-V90 | 500 | UR-TWC290-3D | 500 | UR-TWC290-3A | 500 | UR-TWC290-5A | 500 | ||||||
| UR-TWC400-V90 | 600 | UR-TWC400-3D | 600 | UR-TWC400-3A | 600 | UR-TWC400-5A | 600 | ||||||
 |  |  |  | ||||||||||
| 3-way corner F | 3-way corner C | 3-way corner B | 5-way corner B | ||||||||||
| Model | L(mm) | Model | L(mm) | Model | L(mm) | Model | L(mm) | ||||||
| UR-TWC220-3F | 400 | UR-TWC220-3C | 400 | UR-TWC220-3B | 400 | UR-TWC220-5B | 400 | ||||||
| UR-TWC290-3F | 500 | UR-TWC290-3C | 500 | UR-TWC290-3B | 500 | UR-TWC290-5B | 500 | ||||||
| UR-TWC400-3F | 600 | UR-TWC400-3C | 600 | UR-TWC400-3B | 600 | UR-TWC400-5B | 600 | ||||||
 | |||
| 6-way corner A | |||
| Model | L(mm) | ||
| UR-TWC220-5A | 400 | ||
| UR-TWC290-5A | 500 | ||
| UR-TWC400-5A | 600 | ||
