Square truss UR-QDB400

Square truss    UR-QDB400
  • Square truss    UR-QDB400
  • Square truss    UR-QDB400

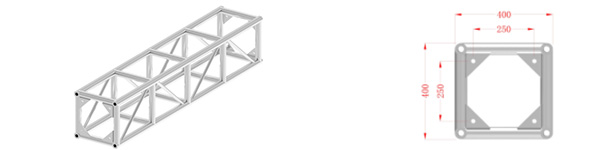

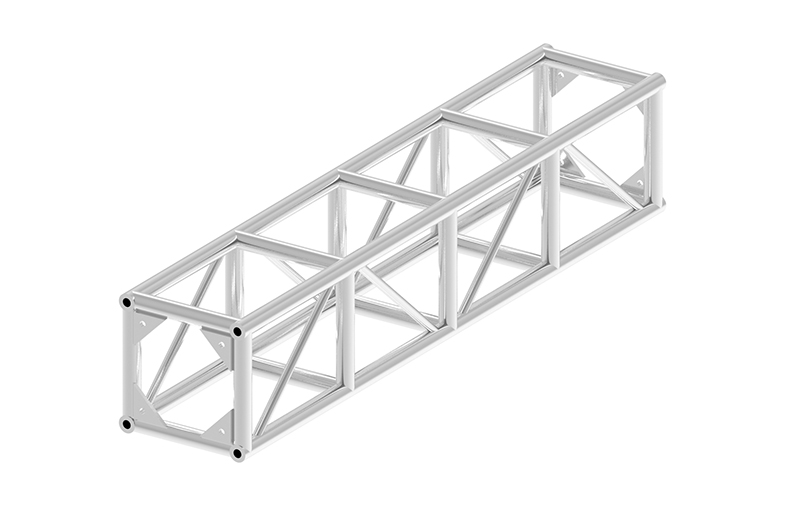

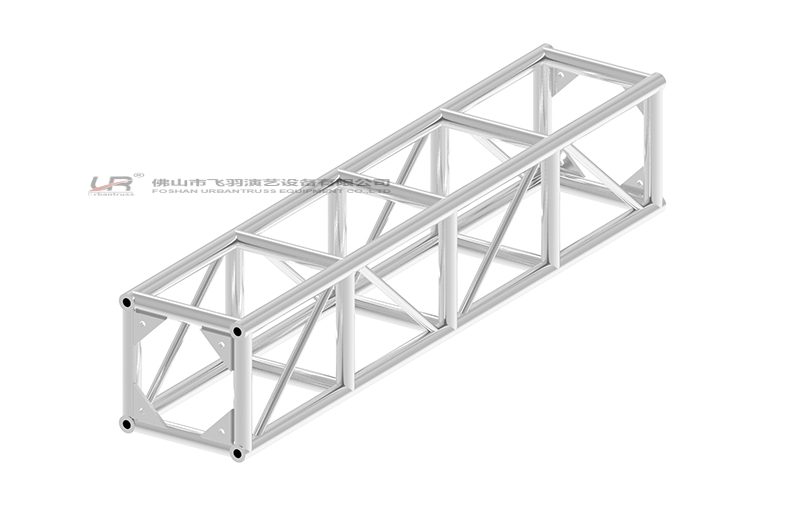

  • This is one of  midsize screw truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.


    Model Description Sizes Length/mm
    UR-QSB400-500 Material:6082-T6

    Main Tubes:50*3.0mm

    Horizontal tubes:30*2.0mm

    Braces:25*2.0mm

    Triangle plate:80*12mm

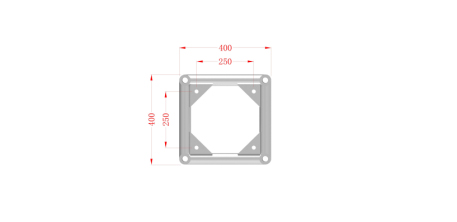

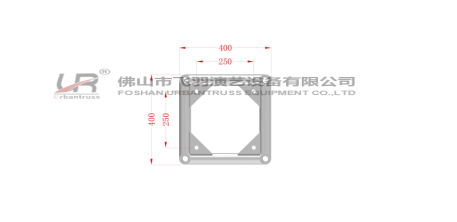

    400*400 500
    UR-QSB400-1000 400*400 1000
    UR-QSB400-1500 400*400 1500
    UR-QSB400-2000 400*400 2000
    UR-QSB400-2500 400*400 2500
    UR-QSB400-3000 400*400 3000
