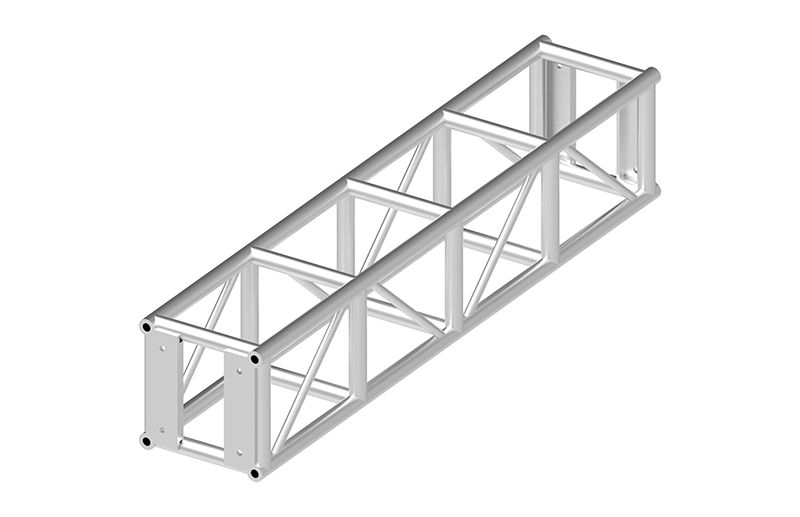

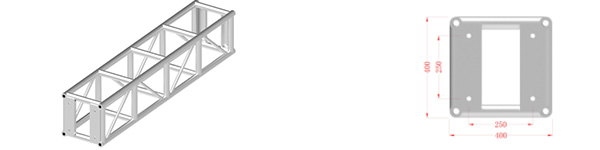

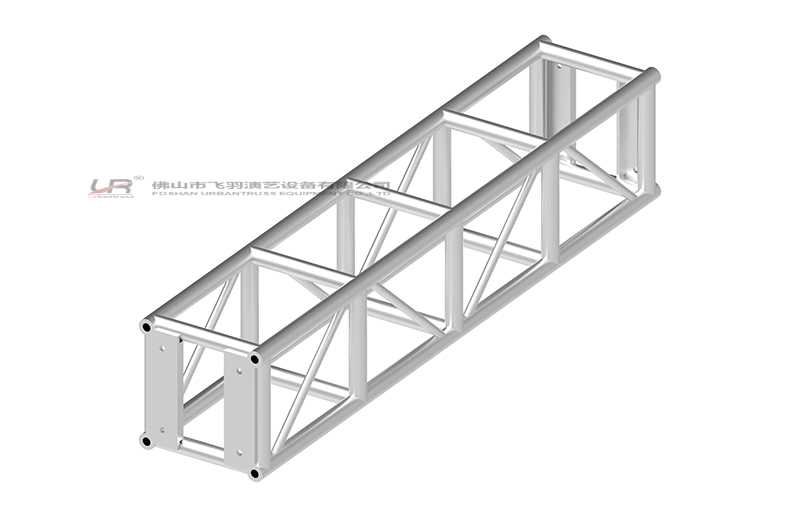

This is one of small screw truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-QDB300-500 |

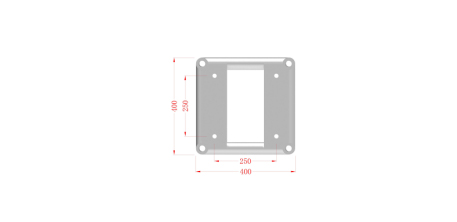

Material：6082-T6 Main Tubes：50*3.0mm Horizontal tubes：25*2.0mm Braces：25*2.0mm Aluminum plate | 300*300 | 500 | |||||||||||||
| UR-QDB300-1000 | 300*300 | 1000 | ||||||||||||||
| UR-QDB300-1500 | 300*300 | 1500 | ||||||||||||||
| UR-QDB300-2000 | 300*300 | 2000 | ||||||||||||||
| UR-QDB300-2500 | 300*300 | 2500 | ||||||||||||||
| UR-QDB300-3000 | 300*300 | 3000 | ||||||||||||||
