300X300

Home  > Products  > Bolt truss > 300X300

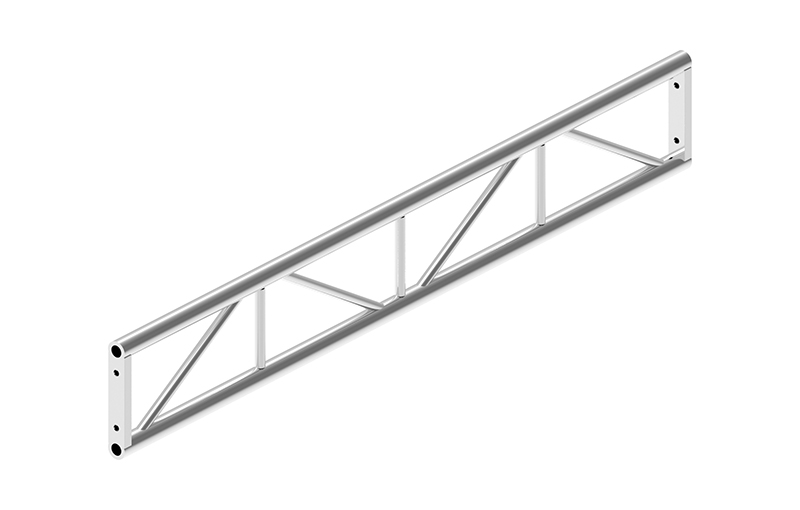

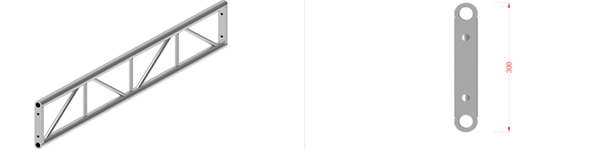

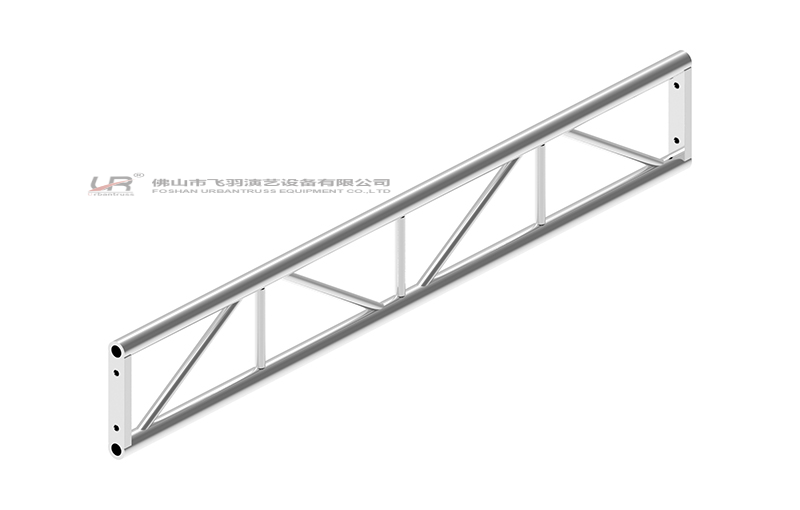

Flat truss UR-FSB300

Flat truss    UR-FSB300
  • Flat truss    UR-FSB300
  • Flat truss    UR-FSB300
  • This is one of  small screw truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.

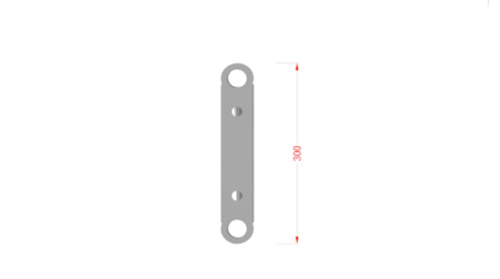

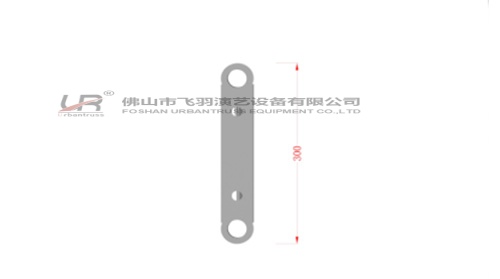

    Model Description Sizes Length/mm
    UR-FSB300-500 Material:6082-T6

    Main Tubes:50*3.0mm

    Horizontal tubes:25*2.0mm

    Braces:25*2.0mm

    Screw Connection way

    300 500
    UR-FSB300-1000 300 1000
    UR-FSB300-1500 300 1500
    UR-FSB300-2000 300 2000
    UR-FSB300-2500 300 2500
    UR-FSB300-3000 300 3000
