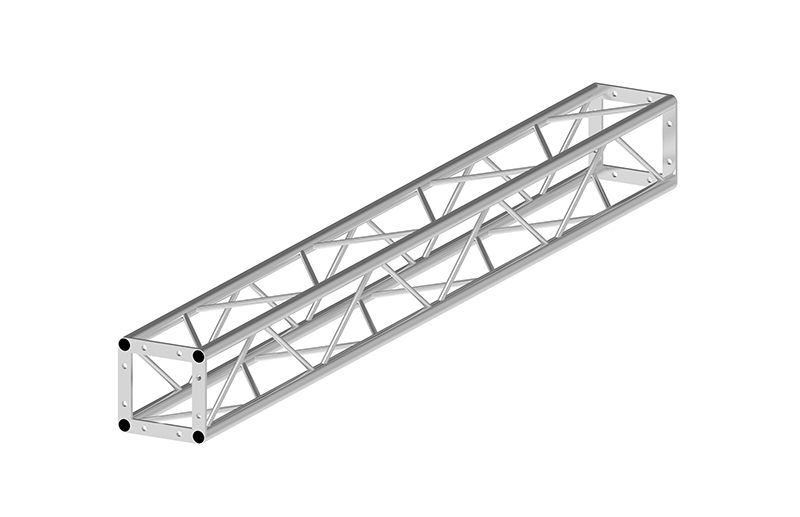

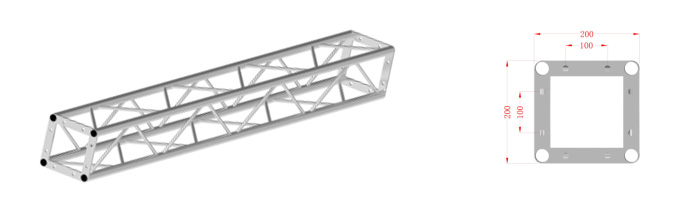

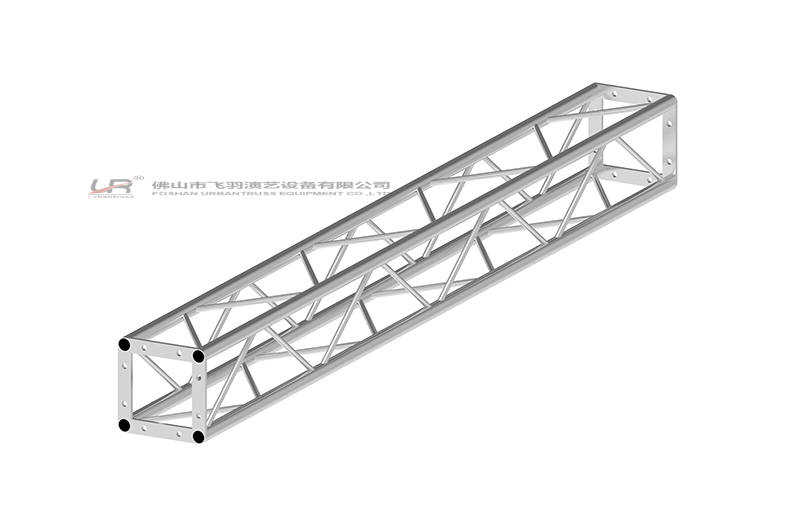

This is one of small screw truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-QDB200-500 |

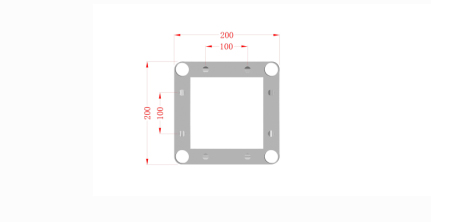

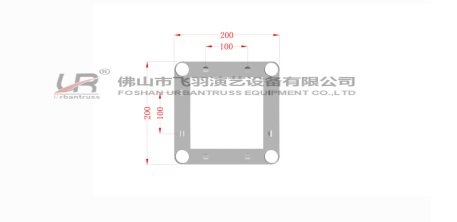

Material：6082-T6 Main Tubes：32*2.0mm Horizontal tubes：12*1.5mm Braces：12*1.5mm Mesh tube | 200*200 | 500 | |||||||||||||
| UR-QDB200-1000 | 200*200 | 1000 | ||||||||||||||
| UR-QDB200-1500 | 200*200 | 1500 | ||||||||||||||
| UR-QDB200-2000 | 200*200 | 2000 | ||||||||||||||
| UR-QDB200-2500 | 200*200 | 2500 | ||||||||||||||
| UR-QDB200-3000 | 200*200 | 3000 | ||||||||||||||
