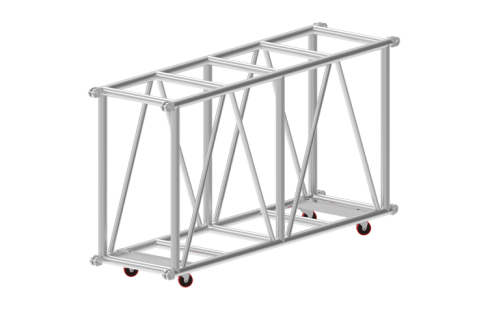

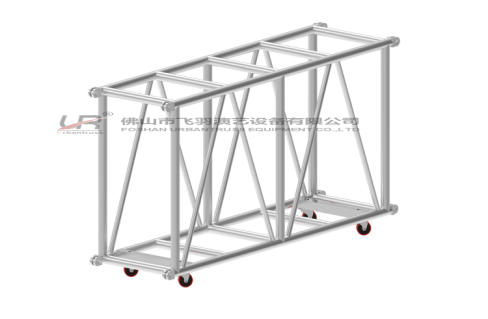

This is one of large size Male/female coupler truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and Male/female coupler truss.Other irregular shapes can be ordered according to the customers requiremen.

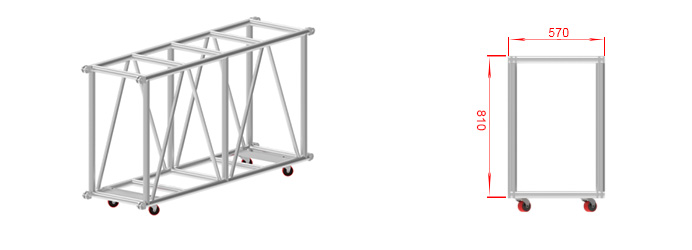

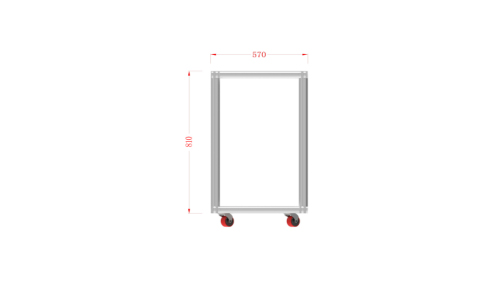

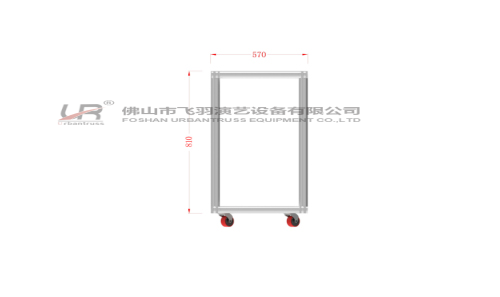

| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-RHF810570-1000 |
Material：6082-T6 Main Tubes：50*5.0mm Horizontal tubes：50*3.0mm Braces：30*3.0mm | 810*570 | 1000 | |||||||||||||
| UR-RHF810570-1500 | 810*570 | 1500 | ||||||||||||||
| UR-RHF810570-2000 | 810*570 | 2000 | ||||||||||||||
| UR-RHF810570-2500 | 810*570 | 2500 | ||||||||||||||
| UR-RHF810570-3000 | 810*570 | 3000 | ||||||||||||||
