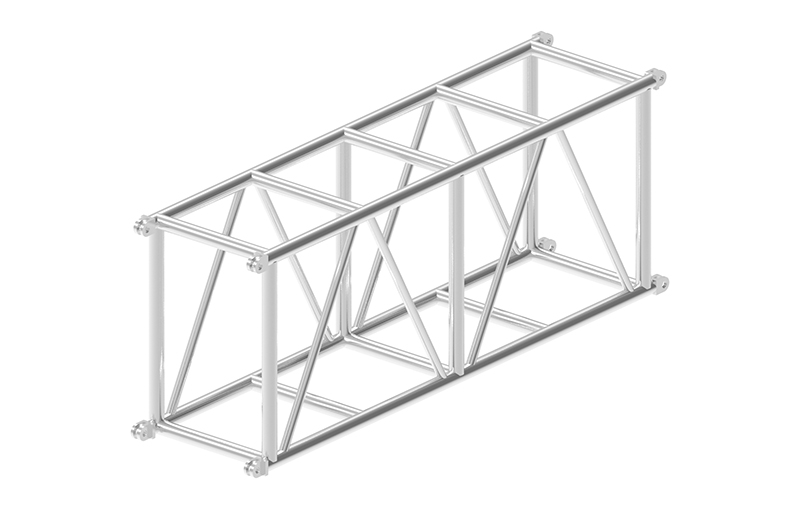

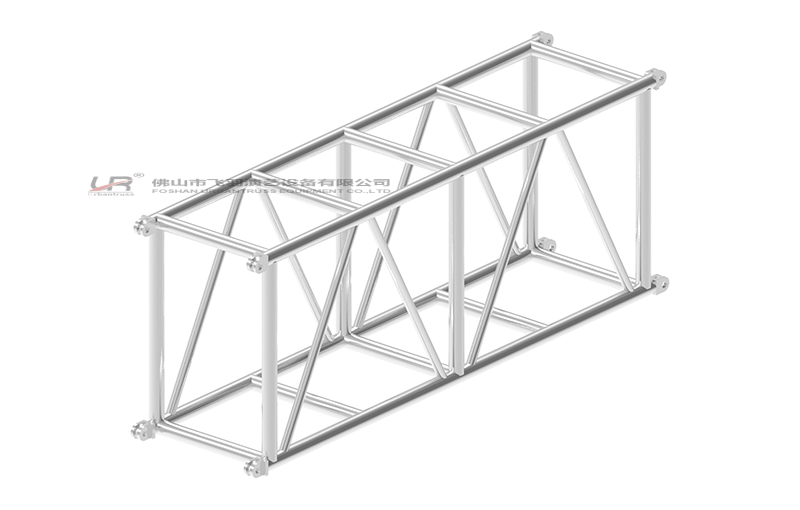

This is one of Large size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-RDF760520-1000 |
Material：6082-T6 Main Tubes：50*4.0mm Horizontal tubes：50*3.0mm Braces：30*3.0mm Fork Connection:50*50*220mm | 760*520 | 1000 | |||||||||||||
| UR-RDF760520-1500 | 760*520 | 1500 | ||||||||||||||
| UR-RDF760520-2000 | 760*520 | 2000 | ||||||||||||||
| UR-RDF760520-2500 | 760*520 | 2500 | ||||||||||||||
| UR-RDF760520-3000 | 760*520 | 3000 | ||||||||||||||
