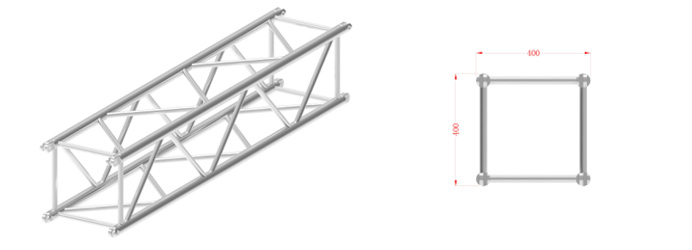

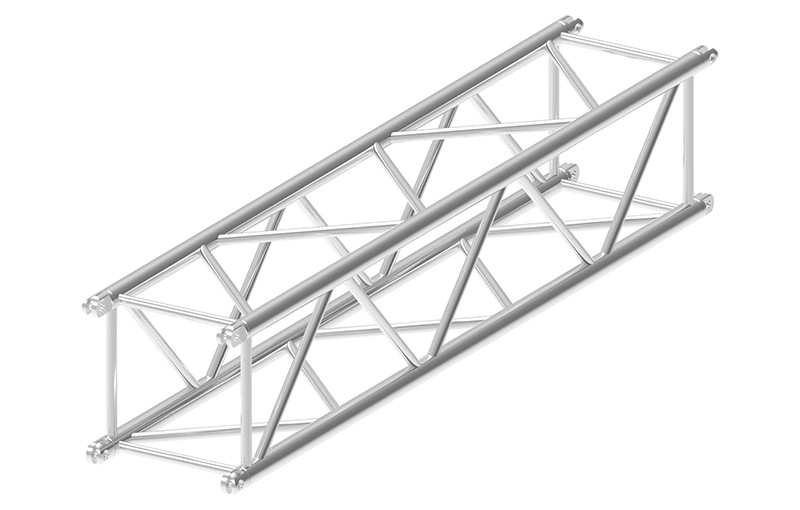

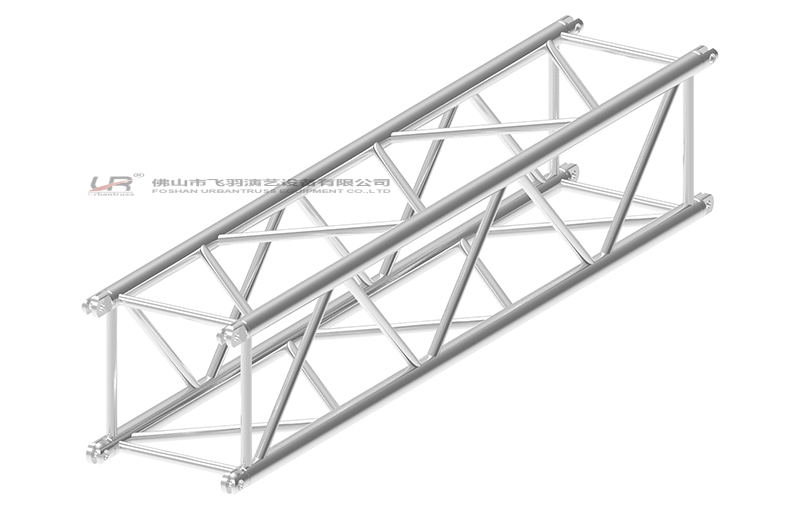

This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Length | Description | Sizes | Length/mm | |||||||||||||
| UR-QSF400-500 |

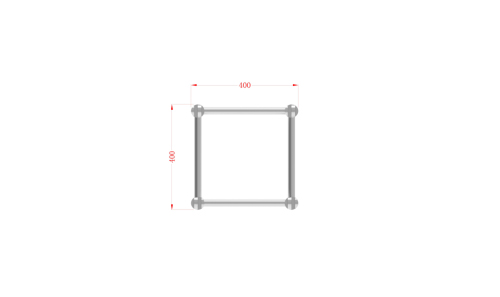

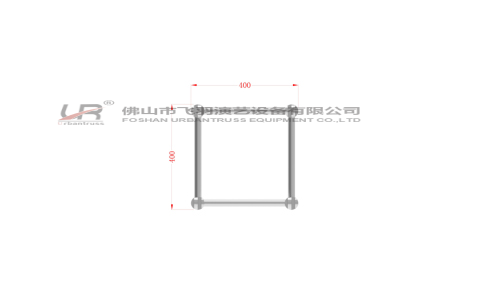

Material：6082-T6 Main Tubes：50*3.0mm Horizontal tubes：25*2.0mm Braces：25*2.0mm | 400*400 | 500 | |||||||||||||
| UR-QSF400-1000 | 400*400 | 1000 | ||||||||||||||
| UR-QSF400-1500 | 400*400 | 1500 | ||||||||||||||
| UR-QSF400-2000 | 400*400 | 2000 | ||||||||||||||
| UR-QSF400-2500 | 400*400 | 2500 | ||||||||||||||
| UR-QSF400-3000 | 400*400 | 3000 | ||||||||||||||
