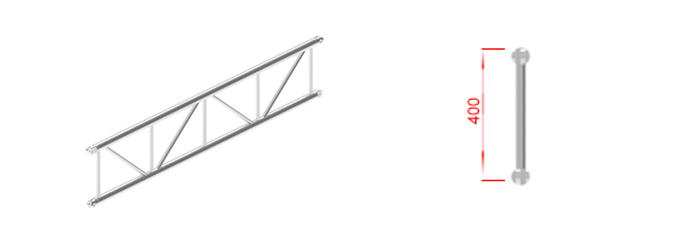

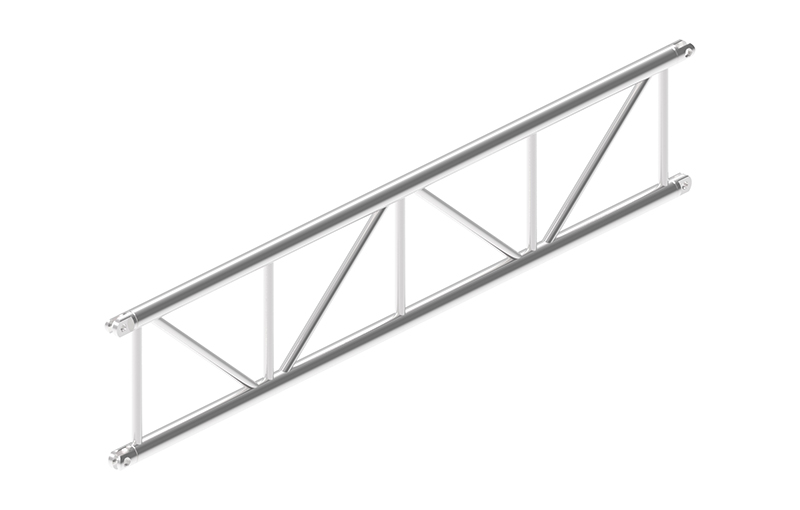

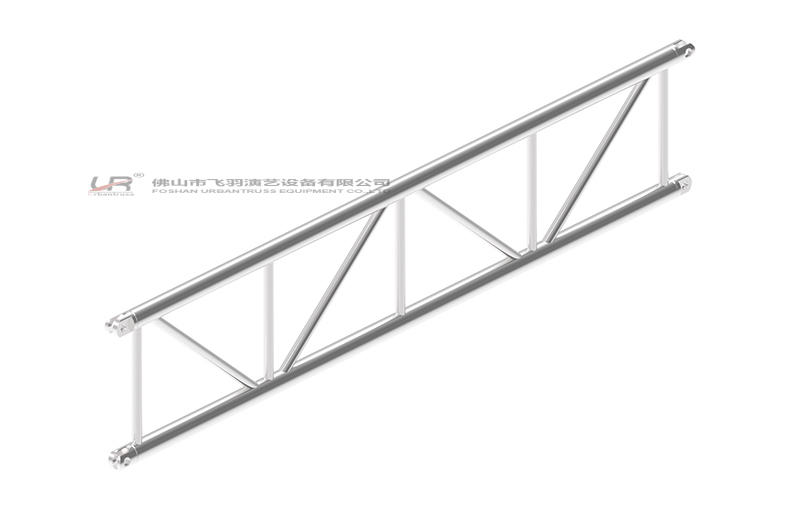

Flat truss UR-FSF400

Flat truss     UR-FSF400
  • Flat truss     UR-FSF400
  • Flat truss     UR-FSF400
  •  This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.


    Model Description Sizes Length/mm
     UR-FSF400-500 Material:6082-T6

    Main Tubes:50*3.0mm

    Horizontal tubes:30*2.0mm

    Braces:30*2.0mm

    Fork Connection:50*50*150mm

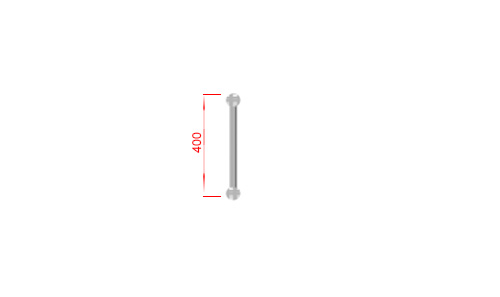

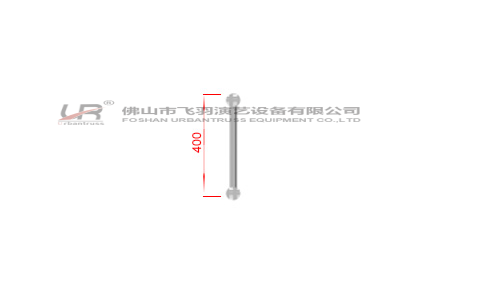

    400*400 500
     UR-FSF400-1000 400*400 1000
     UR-FSF400-1500 400*400 1500
     UR-FSF400-2000 400*400 2000
     UR-FSF400-2500 400*400 2500
     UR-FSF400-3000 400*400 3000
