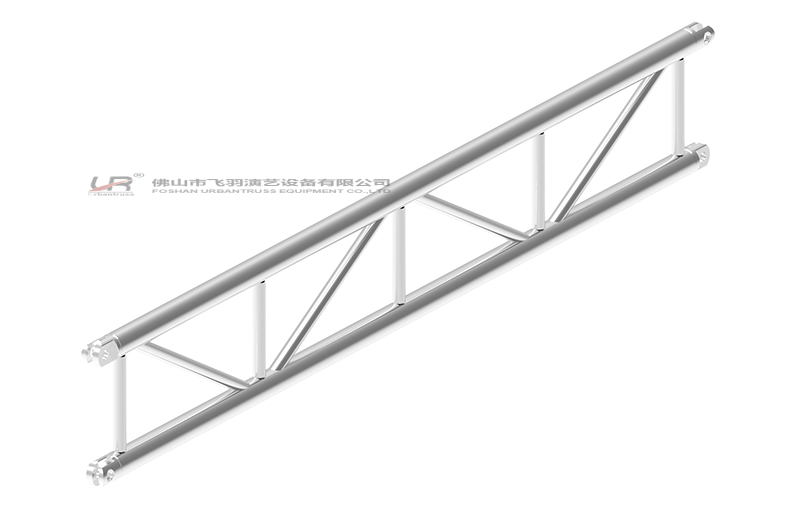

This is one of Large size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | |||||||||||||
| UR-FM29A |

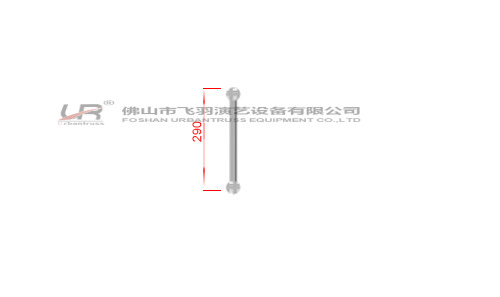

Material：6082-T6 Main Tubes：50*2.0mm Horizontal tubes：20*2.0mm Braces：20*2.0mm | 290 | 500 | |||||||||||||
| UR-FM29A | 290 | 1000 | ||||||||||||||
| UR-FM29A | 290 | 1500 | ||||||||||||||
| UR-FM29A | 290 | 2000 | ||||||||||||||
| UR-FM29A | 290 | 2500 | ||||||||||||||
| UR-FM29A | 290 | 3000 | ||||||||||||||
 |  |  |  |  | ||||||||||||
| Length | （U.D.L) | （C.P.L) | （T.P.L) | （F.P.L） | （Q.P.L） | |||||||||||
| Span/m | Symmetrical Load kg/m | Deflection/cm | Centre Point Load kg | Deflection/cm | Third Points Load kg | Deflection/cm | Fourth Points Load kg | Deflection/cm | Fifth Points Load kg | Deflection/cm | ||||||
| 2 | 567 | 0.3 | 708 | 0.2 | 567 | 0.3 | 387 | 0.2 | 283.5 | 0.2 | ||||||
| 3 | 377 | 0.6 | 586.2 | 0.5 | 503.6 | 1 | 335.8 | 0.6 | 278.7 | 0.6 | ||||||
| 4 | 250 | 1.3 | 501 | 1.1 | 375.8 | 1.4 | 250.5 | 1.1 | 207.9 | 1.1 | ||||||
| 5 | 159 | 2.1 | 398 | 1.7 | 298.6 | 2.1 | 199 | 1.6 | 167.7 | 1.7 | ||||||
| 6 | 109 | 3 | 329 | 2.4 | 246.8 | 3.1 | 164.5 | 2.4 | 136.5 | 2.4 | ||||||
| 7 | 79.8 | 4 | 279.2 | 3.2 | 209.4 | 4.1 | 139.6 | 3.1 | 115.9 | 3.3 | ||||||
| 8 | 60 | 5.1 | 241.5 | 4.2 | 181 | 5.4 | 120.8 | 4.1 | 100 | 4.1 | ||||||
| 9 | 47 | 6.9 | 211.8 | 5.4 | 158.9 | 6.7 | 105.9 | 5.2 | 87.9 | 5.3 | ||||||
| 10 | 37 | 8.4 | 187.8 | 6.4 | 140.9 | 8.2 | 93.9 | 6.4 | 77.9 | 6.4 | ||||||
