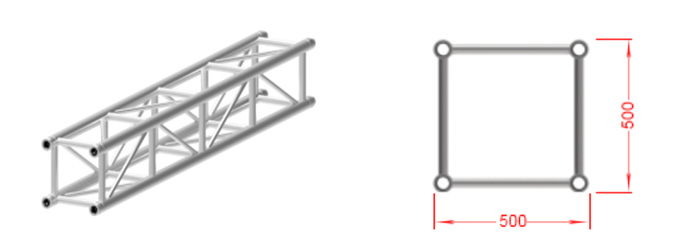

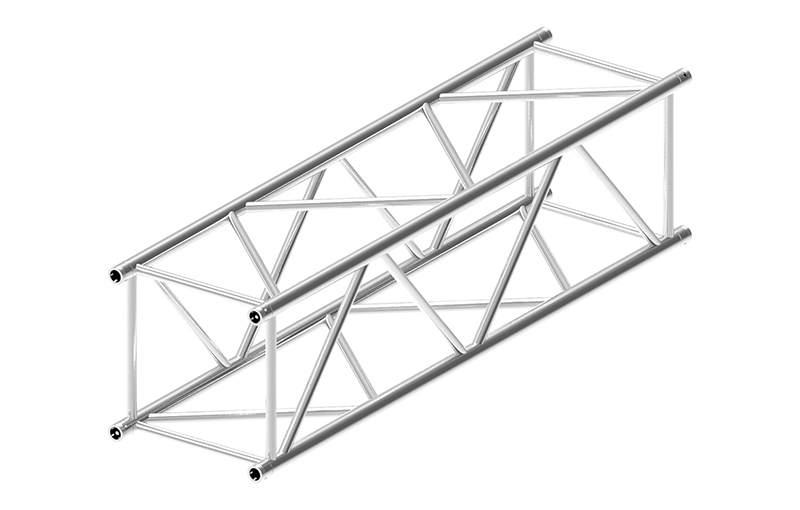

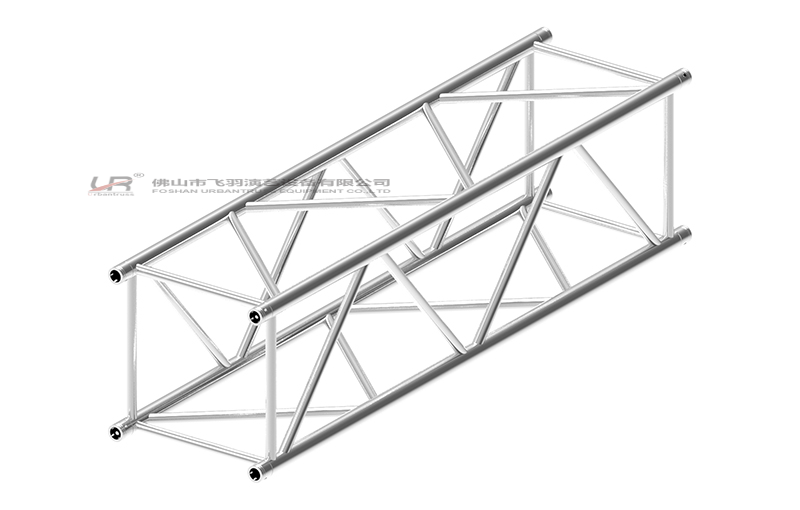

This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-QDC520-1000 |

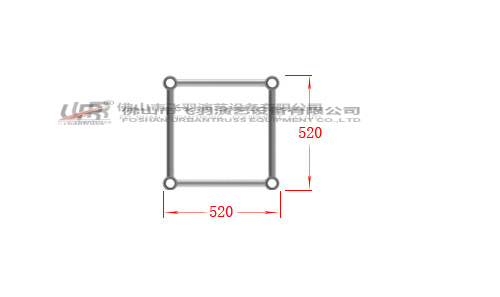

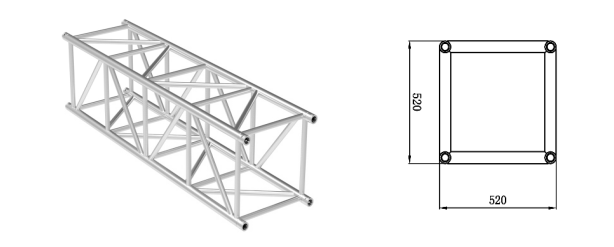

Material：6082-T6 Main Tubes：50*3.0mm Horizontal tubes：30*3.0mm Braces：30*3.0mm | 520*520 | 1000 | 15 | ||||||||||||
| UR-QDC520-1500 | 520*520 | 1500 | 21 | |||||||||||||
| UR-QDC520-2000 | 520*520 | 2000 | 25.13 | |||||||||||||
| UR-QDC520-2500 | 520*520 | 2500 | 30.5 | |||||||||||||
| UR-QDC520-3000 | 520*520 | 3000 | 36.1 | |||||||||||||
