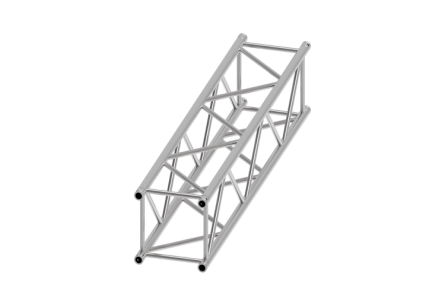

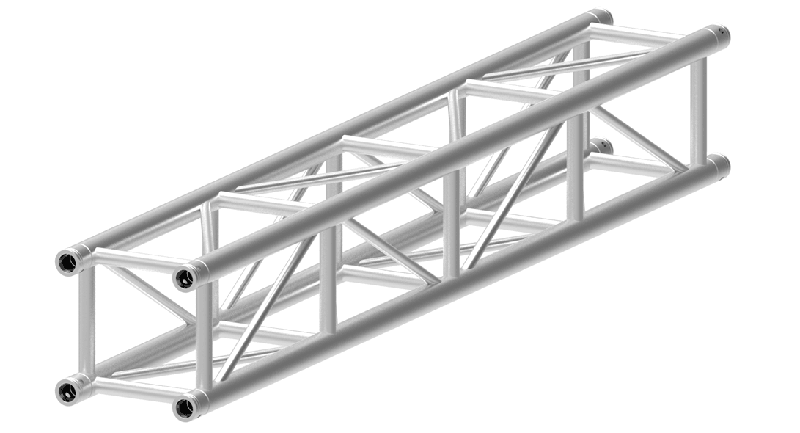

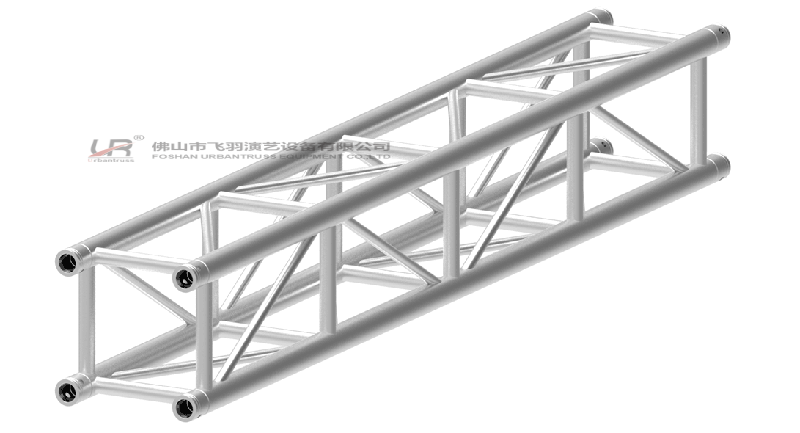

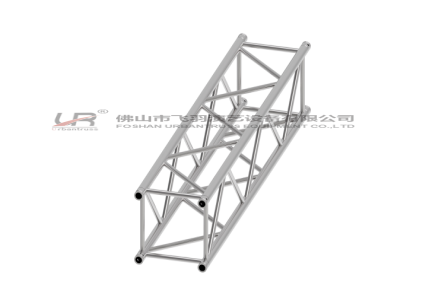

This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.
| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-QDC400-500 |

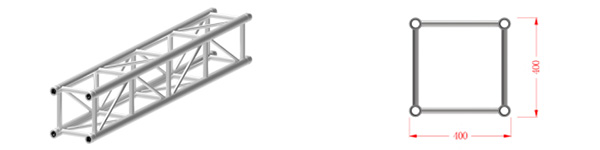

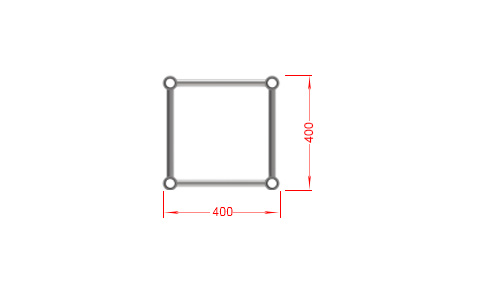

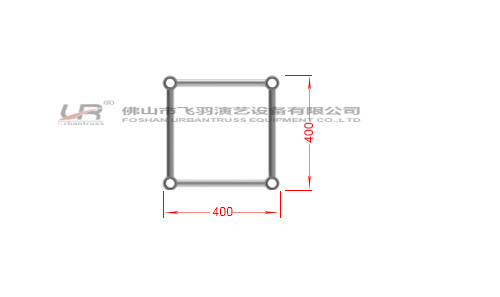

Material：6082-T6 Main Tube：50*3.0mm Brace：30*2.0mm Diagonal：30*2.0mm Spacer:50*80mm | 400*400 | 500 | 6.4 | ||||||||||||
| UR-QDC400-1000 | 400*400 | 1000 | 10.9 | |||||||||||||
| UR-QDC400-1500 | 400*400 | 1500 | 15.6 | |||||||||||||
| UR-QDC400-2000 | 400*400 | 2000 | 19 | |||||||||||||
| UR-QDC400-2500 | 400*400 | 2500 | 24 | |||||||||||||
| UR-QDC400-3000 | 400*400 | 3000 | 28 | |||||||||||||
