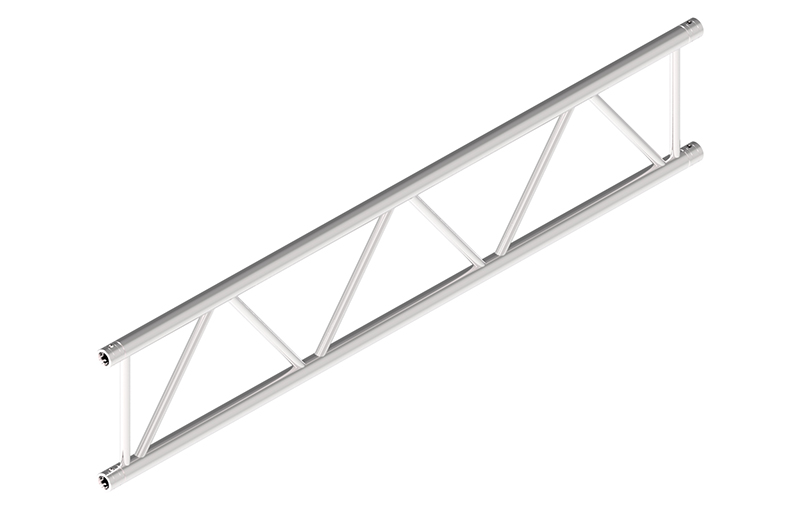

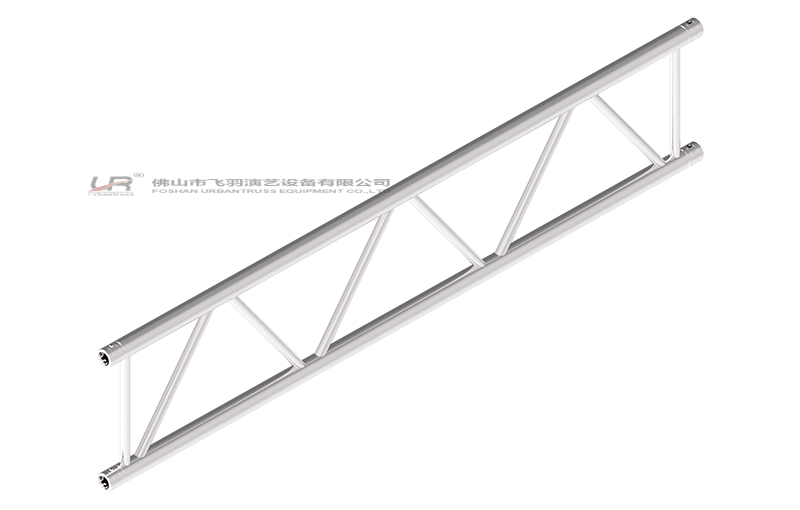

This is one of Medium size truss,6082-T6 Aluminum material,with the advantage of beautiful appearance,samll volume but with stronger load capacity,lighter self-weight. Used for some samll performances,exhibitions etc.We provide three difference connection option:Conical,screw and hinge truss.Other irregular shapes can be ordered according to the customers requiremen.

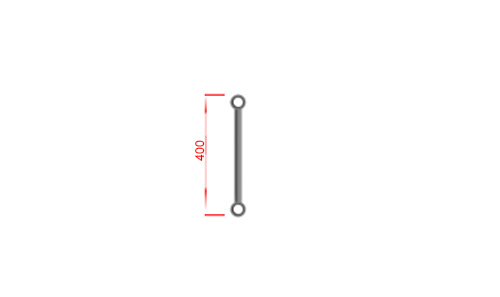

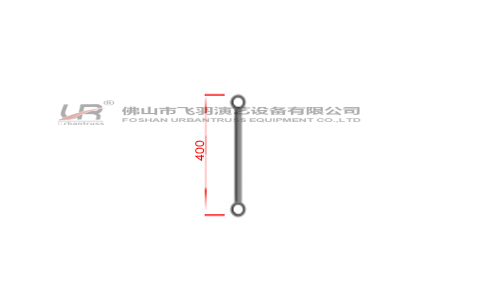

| Model | Description | Sizes | Length/mm | Weight/kg | ||||||||||||
| UR-FSC400-500 |
Material：6082-T6 Main Tubes：50*3.0mm Horizontal tubes：25*2.0mm Braces：25*2.0mm | 400 | 500 | 2.6 | ||||||||||||
| UR-FSC400-1000 | 400 | 1000 | 4.1 | |||||||||||||
| UR-FSC400-1500 | 400 | 1500 | 5.63 | |||||||||||||
| UR-FSC400-2000 | 400 | 2000 | 7.31 | |||||||||||||
| UR-FSC400-2500 | 400 | 2500 | 8.9 | |||||||||||||
| UR-FSC400-3000 | 400 | 3000 | 10.5 | |||||||||||||
